TypeScript

Mapped Types

A powerful way to create new types based on existing ones is through mapped types. Mapped types allow you to transform properties of an existing type into a new type.

If you are coming from a strictly-typed language like Java or C#, you will be amazed at this.

I have a practical example of this for Angular developers.

If you are using ReactiveForms in Angular, a few versions ago they released type safety for the FormGroup and FormControl classes.

You can provide generic type parameters for the FormGroup and FormControl classes, and they will infer the types of the properties in the form group.

Internally they are using mapped types to create the types for the form group and form control classes, so you can access their values with type safety (instead of the form.controls.get('name').value syntax).

With this, you can get direct access to the controls in the form group with type safety, like this:

export class AddUser {
  form = new FormGroup({
    name: new FormControl<string>('', { nonNullable: true }),
    email: new FormControl<string>('', { nonNullable: true }),
    nickName: new FormControl<string>('', { nonNullable: true }),
    auth: new FormGroup({
      password: new FormControl<string>('', { nonNullable: true }),
      confirmPassword: new FormControl<string>('', { nonNullable: true }),
    }),
  });


  submit() {
    const pwdBefore = this.form.get('auth')?.get('password')?.value;
    console.log(pwdBefore);
    const pwd = this.form.controls.auth.controls.password.value;
    console.log(pwd);
  }
}

This is a big win, but I still don’t like the fact that I often have my own type that represents the form data, and want to use that to create a type for the form group based on that. That way if I change something on the type, I’ll get build errors on the form.

Let’s say I have a type that represents the user data:

    type Signup = {
      name: string;
      email: string;
      nickName: string | null; // doesn't like optional types. those stink anyhow.
      auth: {
        password: string;
        confirmPassword: string;
      };
    };

I cannot pass this directly to the FormGroups type parameter, because it needs the properties to be instances of FormControl or FormGroup, not just plain types.

So I would have to manually create a type that represents the form group, like this:

type SignupForm = {
  name: FormControl<string>;
  email: FormControl<string>;
  nickName: FormControl<string | null>;
  auth: FormGroup<{
    password: FormControl<string>;
    confirmPassword: FormControl<string>;
  }>;
};

Now I have two “sources of truth”, and still have to implement the constructor for the FormGroup manually.

This is where mapped types can help.

export type FormGroupType<T> = {
  [K in keyof T]: T[K] extends object
    ? FormGroup<FormGroupType<T[K]>>
    : FormControl<T[K]>;
};

This is so simple, I’m embarrassed to even try to explain it. If you’ll indulge me, though.

Note: That was sarcasm. I hope.

The FormGroupType type takes a generic type parameter T, which represents the type of the form data. It then uses a mapped type to iterate over each property K in T. If the property type T[K] is an object, it creates a FormGroup with the type of the nested properties. If it is not an object, it creates a FormControl with the type of the property. This allows you to create a type that represents the form group based on the type of the form data, without having to manually create the type for the form group.

So, you give it a type that represents the form data, and from that it creates a type that represents the form group.

The [K in keyof T]: ... syntax is the mapped type syntax. It iterates over each property in the type T, and creates a new property in the new type with the same name and type. It’s a “loop”.

This is a recursive loop, because if it reaches a key (property) that is an object, it calls itself to create a new FormGroup with the type of the nested properties.

Here’s another sample to show show how you might use this:

Let’s say we have a User type like this:

type User = {
  id: string;
  name: {
    first: string;
    last: string;
  };
  email: string | null;
};

Maybe it is an entity we are keeping in a Signal Store or service and something like that.

When we collect the data for a new user, we need a type just like that, but without the id property, because we don’t have that yet. Maybe it is assigned by the API, or whatever.

type UserCreate = Omit<User, 'id'>; //  { name: { first: string; last: string }; email: string | null; }

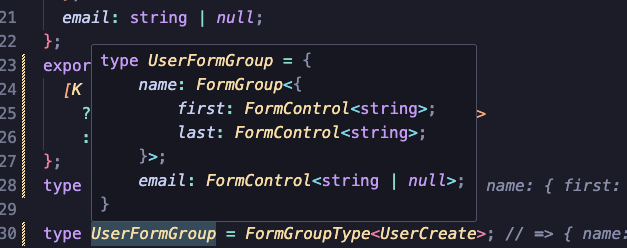

When we used our FormGroupType type, we can create a type for the form group like this:

type UserFormGroup = FormGroupType<UserCreate>; // => { name: FormGroup<{ first: FormControl<string>; last: FormControl<string> }>; email: FormControl<string | null>; }

Back to the Example

Section titled “Back to the Example”

We can now create our form group based on this type and we get full type safety. If a property on our type (the User, or UserCreate), we’ll get compile-time errors if we try to access a property that doesn’t exist, or if we try to assign a value of the wrong type.

  form = new FormGroup<UserFormGroup>({
    name: new FormGroup({
      first: new FormControl<string>('', { nonNullable: true }),
      last: new FormControl<string>('', { nonNullable: true }),
    }),
    email: new FormControl<string | null>(''),
  });

So if we change our User type like this:

type User = {
  id: string;
  name: {
    first: string;
    last: string;
  };
  email: string | null;
  emailAddress: string | null;
  birthdate: string
};

We’ll get an error in our form group constructor because we are trying to access a property that doesn’t exist on the UserCreate type:

  form = new FormGroup<UserFormGroup>({
    name: new FormGroup({
      first: new FormControl<string>('', { nonNullable: true }),
      last: new FormControl<string>('', { nonNullable: true }),
    }),
    email: new FormControl<string | null>(''),
  });
// Error: Property 'emailAddress' does not exist on type 'UserCreate'.

Creating a Helper to Implement The Type For You

Section titled “Creating a Helper to Implement The Type For You”

What we’ve seen is a big win for us. Using the type system to alert us to problems or changes in our code is a huge win.

But I’m lazy, too.

Here’s an example, building on top of this so that in the easy cases, we don’t even have to write the constructor for the FormGroup ourselves.

createFormGroup.ts
export function createFormGroup<T>(model: T): FormGroup<FormGroupType<T>> {
  // eslint-disable-next-line @typescript-eslint/no-explicit-any
  const group: any = {};
  for (const key in model) {
    if (typeof model[key] === 'object' && model[key] !== null) {
      group[key] = createFormGroup(model[key]);
    } else {
      group[key] = new FormControl(model[key]);
    }
  }
  return new FormGroup(group);
}

You give this function a model that represents the form data, and it will return a FormGroup with the correct type. You can use it like this:

//   form = new FormGroup<UserFormGroup>({
//     name: new FormGroup({
//       first: new FormControl<string>('', { nonNullable: true }),
//       last: new FormControl<string>('', { nonNullable: true }),
//     }),
//     email: new FormControl<string | null>(''),
//   });


  const initial: UserCreate = {
    name: {
      first: '',
      last: '',
    },
    email: null,
  };
  form = createFormGroup(this.initial);

I commented out the old way of creating the form group, and replaced it with the createFormGroup function.

The initial is an instance of our UserCreate type, and we pass that to the createFormGroup function.

This kind of approach is used in a many libraries, like @ngrx/store with it’s ActionCreator and createReducer functions, and in @ngrx/signals with its withEntities function.

I don’t find it an every day thing for my development, but it is a powerful tool to have in your toolbox when you need it because you are tired of writing the same code over and over again, or you want to make sure that your code is type-safe and maintainable.
